Traefik

Introduction¶

Traefik is based on the concept of EntryPoints, Routers, Middlewares and Services.

The main features include dynamic configuration, automatic service discovery, and support for multiple backends and protocols.

EntryPoints: EntryPoints are the network entry points into Traefik. They define the port which will receive the packets, and whether to listen for TCP or UDP.

Routers: A router is in charge of connecting incoming requests to the services that can handle them.

Middlewares: Attached to the routers, middlewares can modify the requests or responses before they are sent to your service

Services: Services are responsible for configuring how to reach the actual services that will eventually handle the incoming requests.

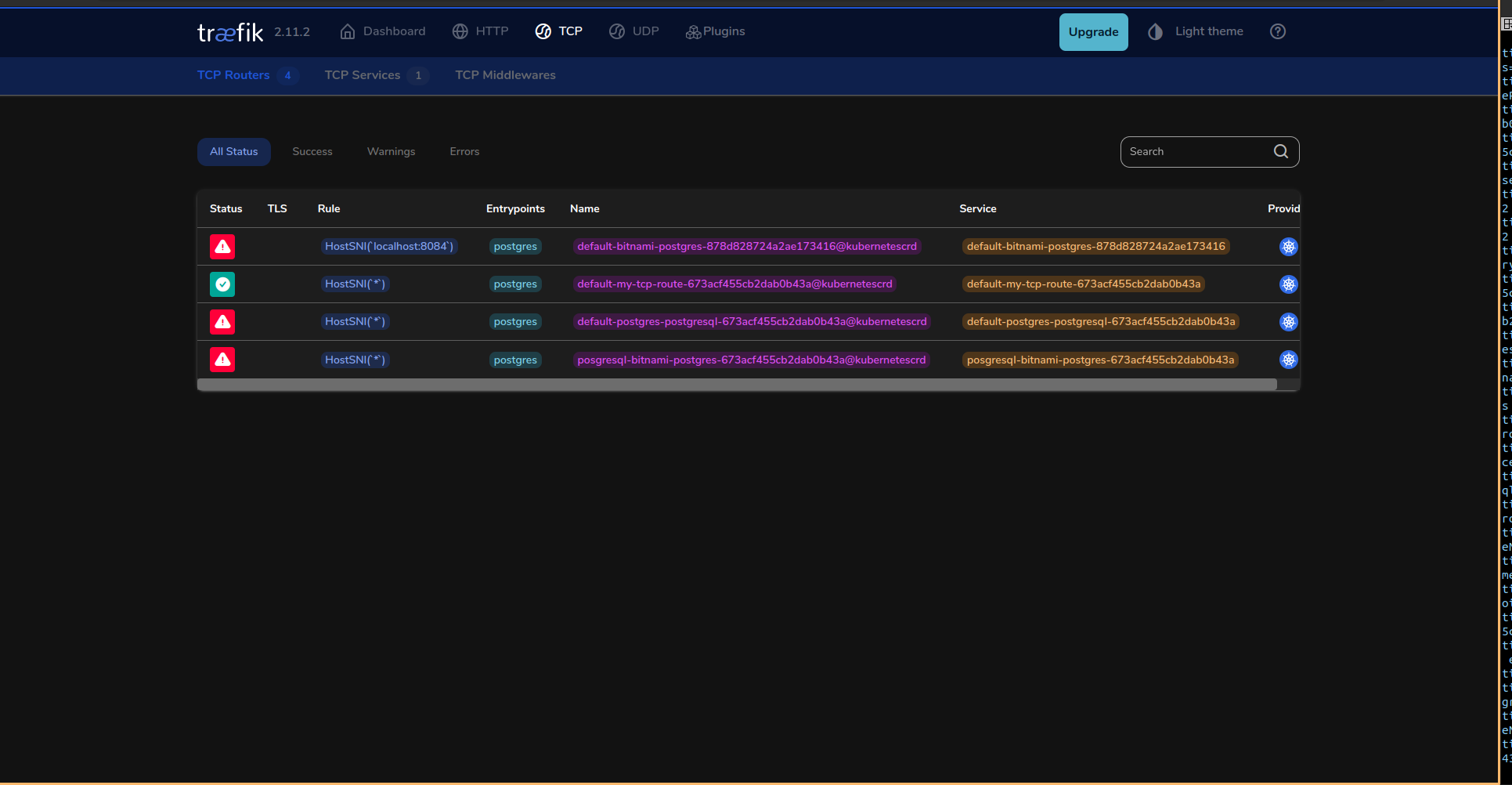

Applied some simple postgres manifest for the TCP routing

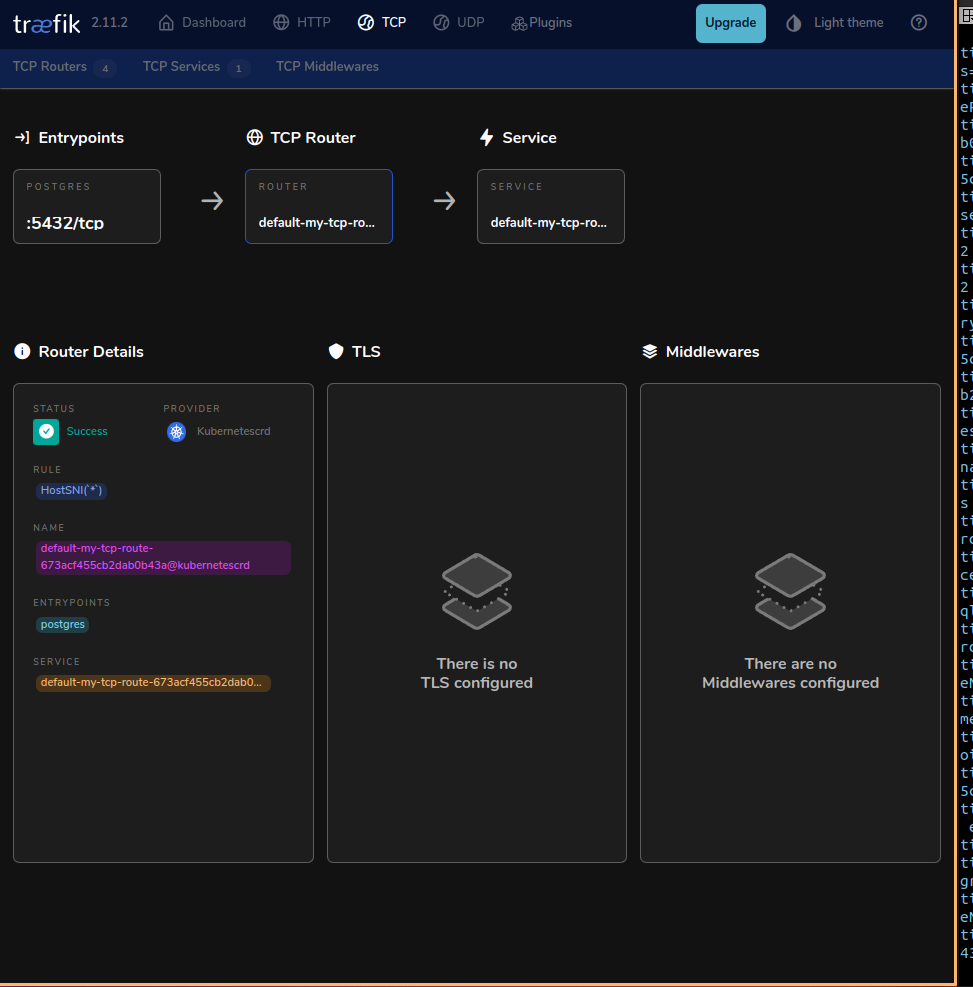

Dashboard Image with the entrypoints

Exposing the Entrypoints using the postgres

Installation¶

helm repo add traefik https://helm.traefik.io/traefik
helm repo update
helm install traefik traefik/traefik --version 28.3.0 -f values.yaml

additionalArguments:
  - "--entryPoints.postgres.address=:5432"
  - "--entrypoints.redis.address=:6379"
  - "--entrypoints.mariadb.address=:3306"
  - "--certificatesresolvers.le-staging.acme.tlschallenge=true"
  - "--certificatesresolvers.le-staging.acme.email=xxx@gmail.com"
  - "--certificatesresolvers.le-staging.acme.storage=/data/acme.json"
  - "--certificatesresolvers.le-staging.acme.caserver=https://acme-staging-v02.api.letsencrypt.org/directory"
 #  - "--providers.kubernetesingress.ingressclass=traefik-internal"
  - "--log.level=DEBUG"
ports:
  redis:
    port: 6379
    protocol: TCP
    expose:
      default: true
    tls:
      enabled: true
  postgres:
    expose:
      default: true
    exposePort: 5432
    port: 5432
    protocol: TCP
    transport:
      respondingTimeouts:
        readTimeout: 0
        writeTimeout: 0
        idleTimeout: 0
      keepAliveMaxRequests: 0
      keepAliveMaxTime: 0
  mariadb:
    expose:
      default: true
    exposePort: 3306
    port: 3306
    protocol: TCP
    transport:
      respondingTimeouts:
        readTimeout: 0
        writeTimeout: 0
        idleTimeout: 0
      keepAliveMaxRequests: 0
      keepAliveMaxTime: 0

Redis¶

Installation

helm repo add bitnami https://charts.bitnami.com/bitnami
helm install my-redis bitnami/redis --version 19.5.5

Manifest the IngressRouteTCP for Redis

apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: redis-service-tcp-clone-1
  namespace: redis
spec:
  entryPoints:
    - redis
  routes:
  - match: HostSNI(`redis1.db.rajivgopalsingh.com.np`)
    services:
    - name: redis-master
      namespace: redis
      port: 6379
  tls:
    certResolver: le-staging
    passthrough: false

Test the Redis server using the CLI

redis-cli -h redis1.db.rajivgopalsingh.com.np -p 6379 -a qk50H1nOdY --tls --sni redis1.db.rajivgopalsingh.com.np

Note:

when changing the values of the tls.passthrough: true occurs
 Error: Protocol error, got "H" as reply type byte

PostgreSQL¶

Tested with the Crunchy Postgres and CloudNative PG CrunchyData PG

Installation:
kubectl create -f https://operatorhub.io/install/postgresql.yaml

CloudNative PG

Installation:
kubectl create -f https://operatorhub.io/install/cloudnative-pg.yaml

Bitnami PG helm repo add bitnami https://charts.bitnami.com/bitnami helm install my-postgresql bitnami/postgresql --version 15.5.7

IngressRouteTCP manifest for the PG

apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: deployment-625-postgres-ha
  namespace: env-203
spec:
  entryPoints:
    - postgres
  routes:
  - match: HostSNI(`*`)
    services:
    - name: deployment-625-postgres-ha
      namespace: env-203
      port: 5432
  tls:
    certResolver: le-staging
    domains:
    - main: db.rajivgopalsingh.com.np
      sans:
      - postgres625.db.rajivgopalsingh.com.np
      - post625.db.rajivgopalsingh.com.np
    passthrough: true
---
apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: deployment-626-postgres-ha
  namespace: env-203
spec:
  entryPoints:
    - postgres
  routes:
  - match: HostSNI(`postgres626.db.rajivgopalsingh.com.np`)
    services:
    - name: deployment-626-postgres-ha
      namespace: env-203
      port: 5432
  tls:
    certResolver: le-staging
    passthrough: true

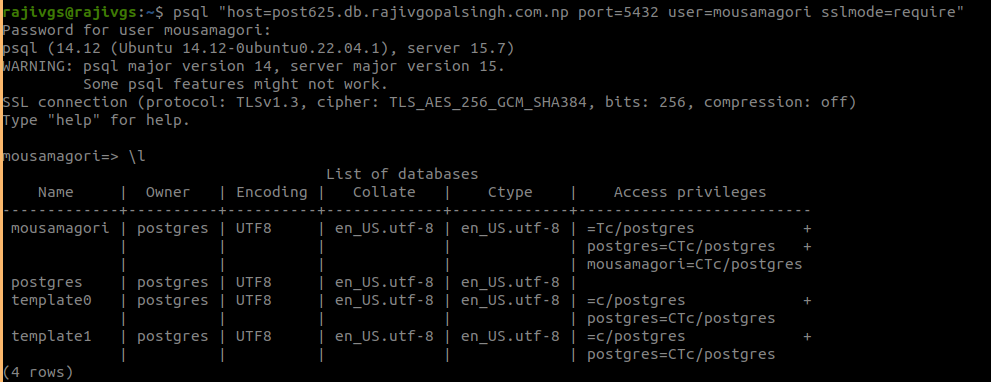

Output

MariaDB¶

helm repo add bitnami https://charts.bitnami.com/bitnami
helm install my-mariadb bitnami/mariadb --version 18.2.4

Manifest IngressRouteTCP for the MariaDB

 apiVersion: traefik.io/v1alpha1
 kind: IngressRouteTCP
 metadata:
   name: deployment-628-mariadb
   namespace: env-203
 spec:
   entryPoints:
     - mariadb
   routes:
   - match: HostSNI(`*`)
     services:
     - name: deployment-628-mariadb
       namespace: env-203
       port: 3306

Currently while setuping the MariaDB the above manifest is working only if we are providing the  wildcard in the HOSTSNI

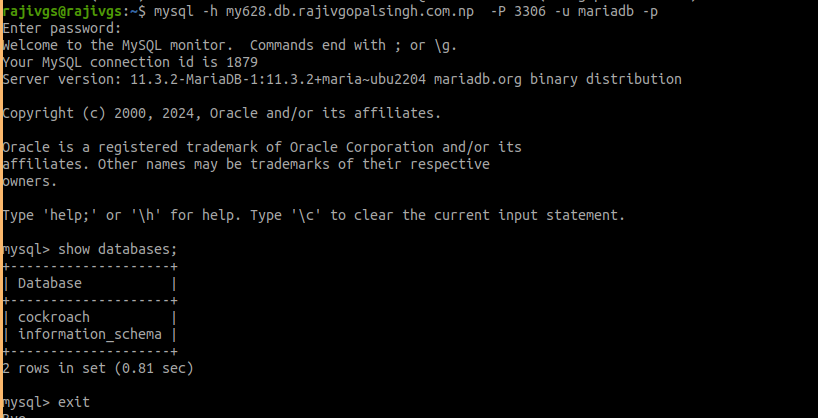

Output

Mongodb helm repo add bitnami https://charts.bitnami.com/bitnami helm install my-mongodb bitnami/mongodb --version 15.6.11

apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: mongodb
spec:
  entryPoints:
    - mongodb
  routes:
    - match: HostSNI(`mongodb.db.umeshkhatiwada.com.np`)
    priority: 10
    services:
        - name: my-mongodb
        port: 27017
        weight: 10
  tls:
    certResolver: le-staging
    passthrough: false

Cmd: mongo --host host1.com --port 27017 -u root -p cRIt05TMRr --authenticationDatabase admin --ssl --sslAllowInvalidCertificates

Rabbitmq¶

helm repo add bitnami https://charts.bitnami.com/bitnami
helm install my-rabbitmq bitnami/rabbitmq --version 14.4.4

apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: rabbitmq
spec:
  entryPoints:
    - amqp
  routes:
    - match: HostSNI(`rabbitmq.db.umeshkhatiwada.com.np`)
    priority: 10
    services:
        - name: my-rabbitmq
        port: 5672
        weight: 10
  tls:
    certResolver: le-staging
    passthrough: false

Testscript:

import pika
import ssl
import socket

# RabbitMQ server configuration
hostname = 'host1.com'  # Replace with your RabbitMQ server hostname or IP address
port = 5672  # Default RabbitMQ SSL port
username = 'user'  # RabbitMQ username
password = 'BE9zlp2MQugpQVbY'  # RabbitMQ password
virtual_host = '/'  # RabbitMQ virtual host

# SSL/TLS configuration
context = ssl.create_default_context()

# Disable hostname checking and certificate verification for self-signed certificates
context.check_hostname = False
context.verify_mode = ssl.CERT_NONE

# TCP Keep-Alive settings
socket.setdefaulttimeout(10)
socket.socket(socket.AF_INET, socket.SOCK_STREAM).setsockopt(socket.SOL_SOCKET, socket.SO_KEEPALIVE, 1)
socket.socket(socket.AF_INET, socket.SOCK_STREAM).setsockopt(socket.IPPROTO_TCP, socket.TCP_KEEPIDLE, 1)
socket.socket(socket.AF_INET, socket.SOCK_STREAM).setsockopt(socket.IPPROTO_TCP, socket.TCP_KEEPINTVL, 1)
socket.socket(socket.AF_INET, socket.SOCK_STREAM).setsockopt(socket.IPPROTO_TCP, socket.TCP_KEEPCNT, 5)

# Connect to RabbitMQ server with SSL
credentials = pika.PlainCredentials(username, password)
parameters = pika.ConnectionParameters(
    host=hostname,
    port=port,
    virtual_host=virtual_host,
    credentials=credentials,
    ssl_options=pika.SSLOptions(context)
)
try:
    connection = pika.BlockingConnection(parameters)
    channel = connection.channel()

    # Declare a queue
    queue_name = 'hello'
    channel.queue_declare(queue=queue_name)

    # Publish a message to the queue
    message = 'Hello, RabbitMQ with SSL!'
    channel.basic_publish(exchange='', routing_key=queue_name, body=message)
    print(f" [x] Sent '{message}'")

    # Close connection
    connection.close()
except Exception as e:
    print(f"Failed to connect to RabbitMQ server: {e}")

Reference¶

Is it possible to use Traefik to proxy PostgreSQL over SSL?
🔨 Support Traefik v3 features · Issue #757 · traefik/traefik-helm-chart
How to connect to Traefik TCP Services with TLS configuration enabled?
Release v3.0.0-rc5 · traefik/traefik
Using Traefik as Ingress on different MetalLB loadbalancerIP?
Exposing a postgres service through Traefik IngressRouteTCP and Cloudflare DNS

Workshop¶

GitHub - traefik-workshops/traefik-workshop

Getting started with Traefik on Kubernetes. A few exercises that help you to start the journey with Traefik Proxy.
